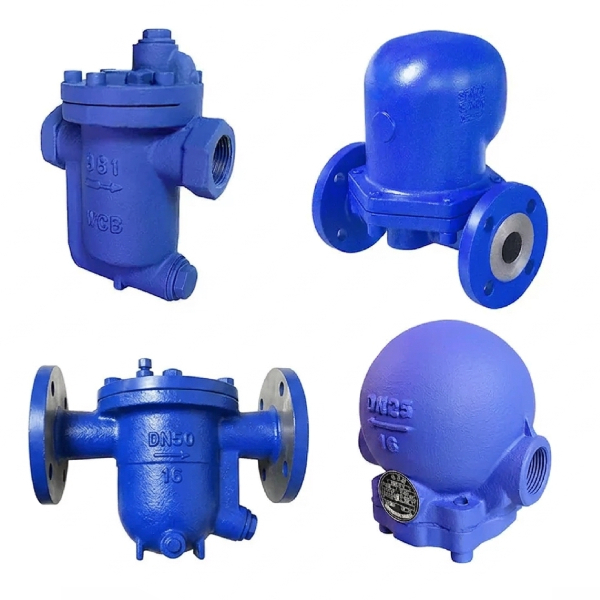

Steam Traps are essential components in steam distribution systems, designed to automatically discharge condensate (water), air, and non-condensable gases while preventing the loss of live steam. They ensure maximum thermal efficiency, protect equipment, and maintain safe and reliable operation across steam networks.
Steam traps operate based on differences in temperature, density, or phase change between steam and condensate. By efficiently removing condensate from steam lines and equipment, they help prevent issues such as water hammer, corrosion, reduced heat transfer efficiency, and damage to pipelines, turbines, and heat exchangers.
These devices are widely used in power plants, oil & gas facilities, petrochemical plants, refineries, food processing units, HVAC systems, and general industrial steam applications. Depending on the application, different types of steam traps are used, including thermodynamic, thermostatic, and mechanical (float & thermostatic) types, each offering specific advantages for pressure, load, and condensate handling conditions.
Steam traps are engineered to perform reliably under high pressure and high temperature conditions, ensuring continuous system efficiency even in demanding industrial environments. Proper selection and maintenance of steam traps significantly reduce energy losses and operating costs while improving overall system performance.
At Middle East Piping, we supply a comprehensive range of Steam Traps in various sizes, pressure ratings, and designs to suit diverse industrial requirements. We offer high-quality products from leading global manufacturers including :
- Yarway
- SVR Global
- Flowork, along with many other approved international brands.
All materials are sourced with full traceability and can be supplied with EN 10204 3.1 / 3.2 certification and third-party inspection upon request, meeting the stringent requirements of EPC contractors, refineries, and end-users across the region. For other pipes & fittings click here or for more valves click here
| Technical Parameter | Standard Specifications & Capabilities |
|---|---|
| Steam Trap Configurations | Thermodynamic (Disc Type) / Thermostatic (Capsule/Bimetallic) / Mechanical Float & Thermostatic (F&T) / Inverted Bucket |
| Nominal Size Range | ½” to 6” (DN15 to DN150) |
| Pressure Class Spectrum | ASME Class 150 / 300 / 600 / 900 / 1500 (PN ratings available on request) |
| Maximum Service Temperature | Engineered for extreme thermal thresholds up to 600°C (depending on specific design parameters) |
| Body & Bonnet Materials | Cast Carbon Steel (ASTM A216 WCB / WCC), Stainless Steel (ASTM A351 CF8 / CF8M / SS304 / SS316), High-Temp Alloy Steel (Chrome-Moly) |
| Internal Trim Materials | Stainless Steel SS304 / SS316 / Hardened Stainless Steel elements for cavitation and erosion protection |
| End Connection Interfaces | Flanged Ends (Raised Face RF, Ring Type Joint RTJ), Threaded (NPT / BSP), Socket Weld (SW), Buttweld (BW) |
| Application Scope | High/low-pressure live steam loops, hot condensate return systems, air drainage, and inert gas separation |
| Design & Testing Norms | ASME B16.34, ASME Section VIII pressure vessel design rules, API 598 / EN 12266-1 Hydrostatic Shell & Seat testing protocols |
| Quality Certification | EN 10204 3.1 / 3.2 Material Traceability Test Certificates, pressure test diagnostic documentation, and 3rd party inspections |
| Stocking Manufacturers | Yarway, SVR Global, Flowork, alongside approved major international manufacturers |
